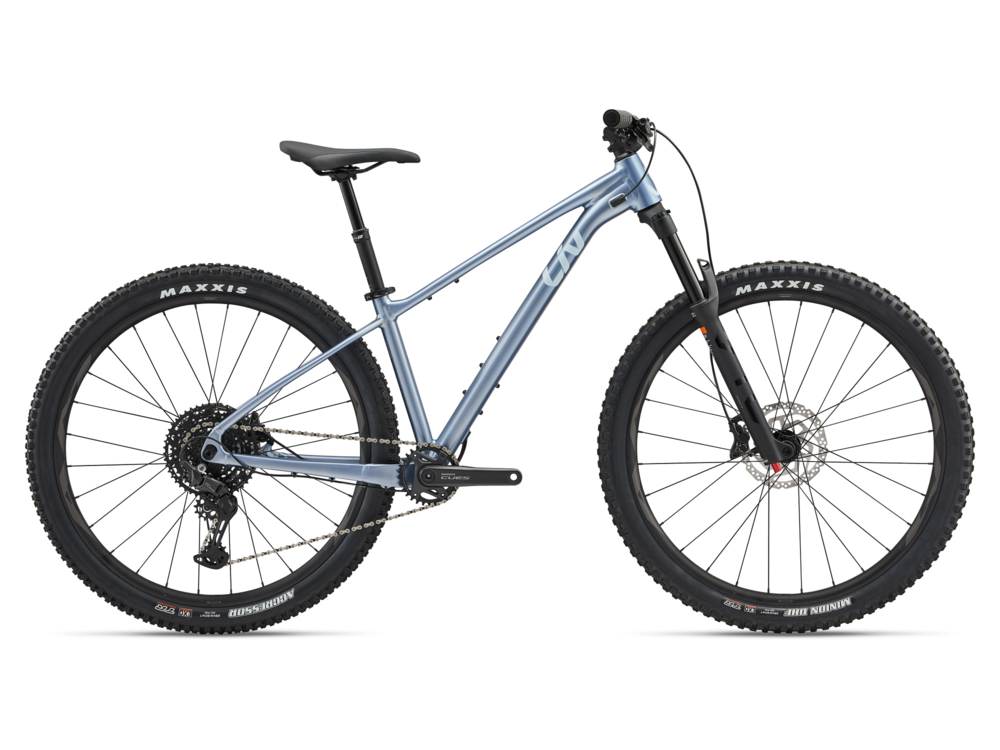

Liv Lurra

Liv Lurra
  • Color: Frost Silver
  • Color: Tyrian Purple
$1,899.00
Color:
Size: Select size
Wheel Size: Select wheel size
Please select options Unavailable

Details

Feel more connected to the trail with the all-new Lurra. Built for charging up singletrack climbs and diving into fast, flowy descents, this hardtail trail bike is simplicity at its best.

Key Performance Factors:

Optimal Trail Design
Lightweight ALUXX SL-grade aluminum hardtail frame with a steep seat tube angle optimizes your input when powering up climbs and hammering on the flats, resulting in greater efficiency and speed. And a 66-degree head tube angle offers confidence on steep

Boosted Confidence
Take on technical terrain with the 130mm of plush front suspension, high-volume tubeless tires offering extreme traction on roots, rocks and ruts, and a dropper seatpost allowing you to get low and ride with control.

Adventure-Ready
Equipped with mounts for 2 water bottle cages and a small gear bag on the underside of the top tube for extra tools and snacks. Internal cable routing keeps the important stuff tidy and protected, so you can stay focused on the ride ahead.

Wheel Sizing:

Size X-Small - Small: 27.5-inch
Size Small - Medium 29-inch

Sizes:
Frame SizeX-SmallSmallSmallMedium
Seat Tube Length (mm)360 380380410
Seat Post Insertion Depth (mm)290 290290340
Seat Tube Angle76.0° 76.0°76.5°76.5°
Top Tube Length (mm)544 564554575
Head Tube Length (mm)95 10590100
Head Tube Angle66.0° 66.0°66.0°66.0°
Fork Rake (mm)44 444444
Trail (mm)113.9 113.9121.7121.7
Wheelbase (mm)1118 114011361159
Chain Stay Length (mm)438 438438438
Bottom Bracket Drop (mm)60 606060
Stack (mm)608 617618627
Reach (mm)393 410406425
Stand Over Height (mm)613 661661712
Handlebar Width (mm)760 760760760
Stem Length (mm)40 404050
Crank Length (mm)165 170170170
Wheel Size27.5" 27.5"29"29"
Sizes:
Frame SizeRider Height (cm)Rider Height (in)
X-Small150 - 163 4'11" - 5'4"
Small158 - 169 5'2" - 5'7"
Medium164 - 175 5'5" - 5'9"

Specs

Pedals Sold Separately
Fork Giant STL 34 RCL, 140mm, 44mm offset, 15x110mm thru-axle, custom tuned
Hubs [F] Giant MTB alloy, 6-bolt, sealed
[R] Giant MTB alloy, 6 bolt, sealed
Rims Giant AM 27.5 or 29, tubeless ready sleeve-joint rim, 30mm IW
Stem Giant Contact SL 35
Chain KMC X11
Frame ALUXX SL-grade aluminum, 12x148 thru-axle
Tires 27.5" [F&R] Maxxis Ardent Race, 27.5x2.6, foldable, TR
29" [F] Maxxis Minion DHF, 29x2.5 WT, foldable, EXO/TR [R] Maxxis Aggressor, 29x2.5 WT, foldable, EXO/TR
Brakes Shimano BR-MT420, hydraulic
Shimano RT-26 rotors, [F]180mm, [R]180mm
Saddle Liv Sylvia
Spokes Sapim
Crankset Shimano CUES U6000, 30t
Seatpost Giant Contact Switch AT adjustable dropper, remote
XS, S: 70-100mm travel / 30.9 x 315mm
M: 110-140mm travel / 30.9 x 395mm
Shifters Shimano CUES U6000, 1x10
Handlebars Giant Contact TR35, 20mm rise, 35mm
Tape/Grips Liv Sole-O
Brake Levers Shimano Deore BL-MT401
Bottom Bracket Shimano, threaded
Rear Derailleur Shimano CUES RD-U6000
Accessories & Extras 27.5": tubeless prepared, max tire size 2.6", max chainring size 32t 29": tubeless prepared, max tire size 2.5", max chainring size 32t
Cassette/Freewheel Shimano CUES, LinkGlide, 10-speed, 11x48

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Tyrian Purple / Small / 29-inch 4711291143708 1068006224 25L22332243E
Frost Silver / Medium / 29-inch 4711291145184 1068006125 25L21139489R
Frost Silver / X-Small / 27.5-inch 4711291143586 1068005123 25L20857702R
Tyrian Purple / X-Small / 27.5-inch 4711291145054 1068005223 25L21388031E
Tyrian Purple / Medium / 29-inch 4711291143715 1068006225 25L2295651E
Frost Silver / Small / 29-inch 4711291145177 1068006124 25L21325857R
Frost Silver / Small / 27.5-inch 4711291143593 1068005124 25L19802076R
