Norco Sight A Frame Kit

Norco Sight A Frame Kit
$2,249.00
Color: Green/Grey
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable

Details

The Sight A boosts your All-Mountain confidence with incredible descending capability, adept, sure-footed climbing, and efficient pedaling.

To make the Sight Aluminum, we had to re-think how you connect with the trail.

With maximum front and rear wheel grip on climbs and descents, Sight A Frame Kit maintains momentum and cadence in technical situations and allows the suspension to move freely without absorbing drivetrain energy.

Reasons It's Rad:
- Precise tune and fit perfects every ride.
- Max standover with long travel dropper posts.
- Sweating the little stuff makes the ride better.
- Four piston brakes with 200/180mm rotors.
- Features the Ride Aligned Design System.

Wheel size:
Sizes Small – X-Large: 27.5-inch or 29-inch

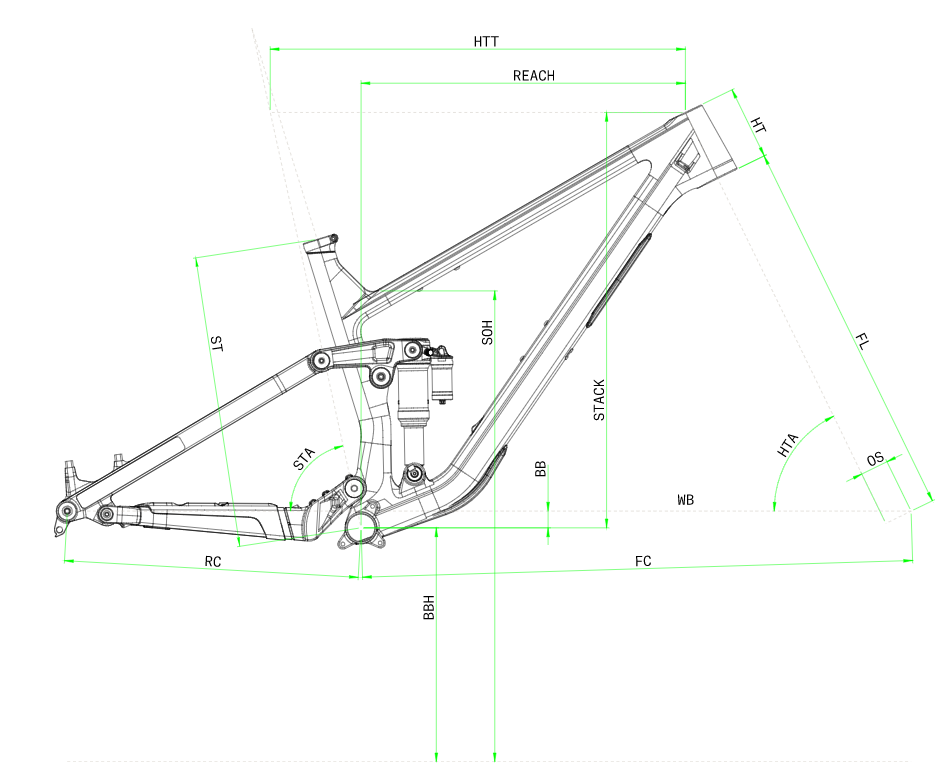

Geometry

Geometry Chart:
Frame Size Small Medium Large X-Large Small Medium Large X-Large
Wheel Size 27.5" 27.5" 27.5" 27.5" 29" 29" 29" 29"
Travel (mm front/mm rear) 160/150
Reach (mm) 425 455 485 515 425 455 485 515
Stack (mm) 585 594 603 612 612 612 621 630
Head Tube Angle 63.5 64
Fork Offset (mm) 37 42
Seat Tube Length (mm) 370 395 435 465 370 395 435 465
Effective Seat Tube Angle 77 77.3 77.7 78 77 77.3 77.7 78
Rear Center Length (mm) 430 435 440 445 430 435 440 445
Bottom Bracket Drop (mm) 15 25
Bottom Bracket Height (mm) 342 350
Horizontal Top Tube Length (mm) 560 588 617 645 566 593 621 649
Wheel Base (mm) 1180 1220 1259 1299 1187 1222 1262 1301
Stand Over Height (mm) 668 673 681 702 678 690 698 712
Head Tube Length (mm) 100 110 120 130 100 100 110 120
Trail (mm) 137 136
Recommended Seat Post Drop (mm) 150 170 170 200 150 170 170 200
Maximum Post Insertion (mm) 200 225 265 265 200 225 265 265
Stem Length (mm) 40
Crank Length (mm) 170 170 170 170 170 170 170 170
Tire Size 2.35" - 2.6"
Water Bottle Compatible 1x620mL 1x750mL 1x620mL 1x750mL
Sizes:
SizeHeight (inches)Height (cm)
X-Small 4'9 1/2" - 5'1 1/2" 146 - 156cm
Small 5'1" - 5'5" 155 - 165cm
Medium 5'4 1/2" - 5'8 1/2" 164 - 174cm
Large 5'8" - 6'0" 173 - 183cm
X-Large 5'11 1/2" - 6' 3 1/2" 181 - 191cm

Specs

Frame Aluminum All-Mountain, 150mm Travel, 27.5" and 29" Options, Ride Aligned™
Fork Sold Separately
Rear Shock RockShox Super Deluxe Ultimate DH, LINM Tune, Meg Neg Air Can, 185x52.5mm Trunnion

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Green/Grey / Large / 29-inch 058817544347 623612956 SIG23695305Y
Green/Grey / X-Large / 29-inch 058817544354 623612957 SIG24513959Y
