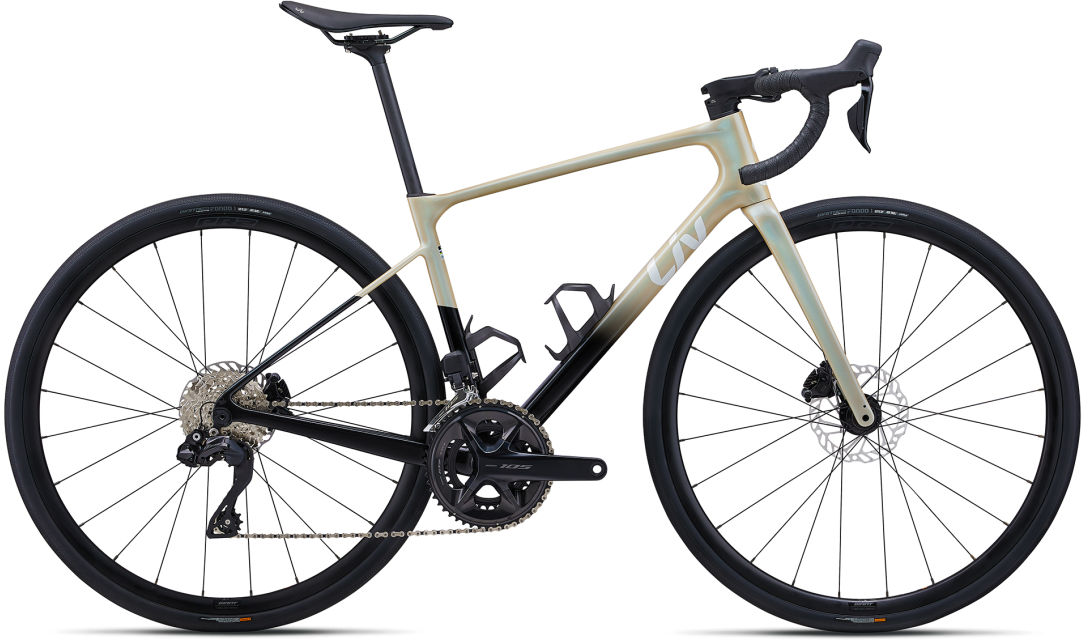

Liv Avail Advanced 1

Liv Avail Advanced 1
  • Color: Shoreline / Black
$4,499.00
Color: Shoreline / Black
Size: Medium
Please select options Unavailable

Details

The Avail Advanced is that riding buddy who's up for any adventure on the road - from solo backroad explorations to after-work shop rides, to all-day epic rides with friends. Designed for performance and capable on any surface, this road warrior is ready to take you as far as you can go, which is always farther than you think.

Key Performance Factors:

Lightweight Advantage
The Avail Advanced delivers lightweight efficiency, thanks to an all-new Advanced-grade composite frame and an Advanced-grade composite fork, which boosts your climbing abilities and makes you virtually uncatchable over long distances.

Superior Compliance
Ride longer without riding harder, with the reengineered frame and fork, optimized for the smoothest, most efficient riding experience. The innovative Liv Contact D-Fuse handlebar and D-Fuse seatpost absorb more road vibrations than round-shaped tubing, without sacrificing efficiency on corners and climbs.

Maximum Control
The Liv Contact D-Fuse handlebar features an ergonomic shape and 8-degree flare drop, for total control on those sunrise-to-sunset rides. Wide, alloy rims are designed for high-volume tubeless tires (up to 38mm), providing predictable handling and stability from asphalt to pavé.

Sizes:
Frame SizeXSSML
A - SEAT TUBE LENGTH (mm) 405 435 465 495
B - SEAT TUBE ANGLE 74.5° 74.5° 74.0° 74.0°
C - TOP TUBE LENGTH (mm) 520 525 535 555
D - HEAD TUBE LENGTH (mm) 125 145 165 185
E - HEAD TUBE ANGLE 71.0° 71.0° 71.0° 72.0°
F - FORK RAKE (mm) 50 50 50 50
G - TRAIL (mm) 68 68 68 61
H - WHEELBASE (mm) 995 1002 1007 1013
I - CHAIN STAY LENGTH (mm) 420 420 420 420
J - BOTTOM BRACKET DROP (mm) 75 73 73 73
K - STACK (mm) 528 547 566 589
L - REACH (mm) 373 373 373 381
M - STAND OVER HEIGHT (mm) 712 737 762 789
N - HANDLEBAR WIDTH (mm) 380 400 400 420
O - STEM LENGTH (mm) 70 80 90 90
P - CRANK LENGTH (mm) 165 170 170 172.5
Q - WHEEL SIZE 700C 700C 700C 700C
Sizes:
Frame SizeRider Height (cm)Rider Height (in)
X-Small 153 - 162 5'0" - 5'4"
Small 158 - 169 5'2" - 5'7"
Medium 165 - 174 5'5" - 5'9"
Large 171 - 182 5'7" - 6'0"

Specs

Frame Advanced-grade composite
Fork Advanced-grade composite, full-composite OverDrive steerer, stainless steel bearings 12x100mm, disc
Rims Giant P-R2 Disc wheelset
Hubs Giant alloy, 12mm thru-axle
Spokes Sapim
Axles 12x142mm thru-axle
Tires Giant Gavia Fondo 1, tubeless, 700x32c (33.5mm), folding
Bottom Bracket Shimano, press fit
Crankset Shimano 105, 34/50
XXS: 165mm
XS: 165mm
S: 170mm
M: 170mm
L: 172.5mm
Shifters Shimano 105 Di2
Front Derailleur Shimano 105 Di2
Rear Derailleur Shimano 105 Di2
Cassette/Freewheel Shimano 105, 12-speed, 11x36
Chain KMC X12
Brakes Shimano 105 Di2 hydraulic
Rotors Giant MPH rotors 160mm
Brake Levers Shimano 105 Di2 hydraulic
Handlebars Liv Contact SL D-Fuse, 31.8mm, 8-degree flare drop
XXS: 410/380mm
XS: 410/380mm
S: 430/400mm
M: 430/400mm
L: 450/420mm
Tape/Grips Liv All Condition
Stem Giant Contact AeroLight
XXS: 70mm
XS: 70mm
S: 80mm
M: 90mm
L: 90mm
Seatpost Giant Contact D-Fuse, composite, 14mm offset
XXS: 350mm
XS: 350mm
S: 350mm
M: 350mm
L: 350mm
Pedals Sold Separately
Saddle Liv Approach

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Shoreline / Black / Medium 04712878963214 1017004125 24A26461990E
