Details

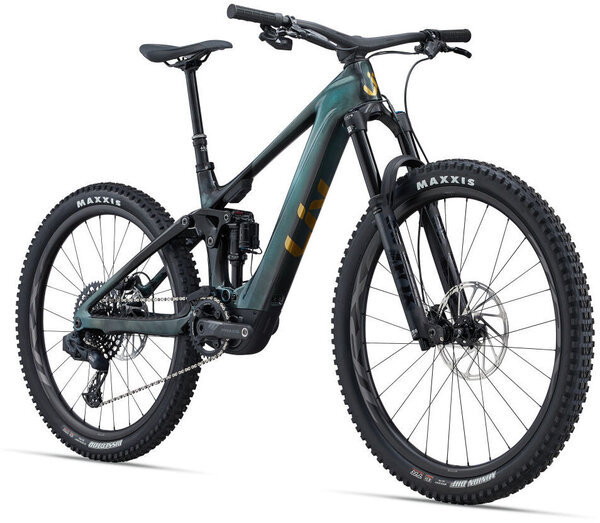

NEXT-LEVEL PERFORMANCE AND UNFORGETTABLE FUN AWAIT YOU ON THIS PREMIUM E-MTB. THE CUTTING-EDGE INTRIGUE X ADVANCED E+ ELITE IS REMARKABLY LIGHT BUT SUPER POWERFUL. GET READY TO FEEL LIKE A PRO AS YOU SHRED TECHNICAL TERRAIN WITH CONFIDENCE, ACCELERATE UP CLIMBS, AND CORNER AT TOP SPEED.
KEY PERFORMANCE FACTORS
Lightweight and nimble
This full-suspension E-MTB, with its short chainstay and 140mm (rear)/150mm (front) travel, is engineered to create an ultra-light, efficient and responsive ride. Exceptional shock absorption is an added bonus on rock gardens.
Powerful and smooth
A powerful 85Nm of torque delivered by the lightweight SyncDrive Pro 2 motor is smooth and instant, keeping you efficient and in control at all times. The ultra-slim, 400Wh battery hidden in the down tube minimizes weight and provides a perfect balance of efficiency and range.
Sleek design
From the integrated control unit to the sleek console on the top tube and the internal cable routing, every design element embodies a high-end, modern look. It combines leading-edge E-MTB design with a user-friendly experience.
RANGE
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
The bar below gives an approximate range. Conditions are categorized as extreme, good, and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
ENERGYPAK 400 / SYNCDRIVE PRO
Range:
- Extreme: 21 miles
- Good: 43 miles
- Ideal: 80 miles
TECHS & FEATURES
ADVANCED COMPOSITE TECHNOLOGY
Liv's High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv's Advanced-Grade Composite frames are designed to offer lightweight and stiffness with optimal compliance.
HYBRID CYCLING TECHNOLOGY
Hybrid Cycling Technology is a system that combines electric power with human power to produce the most efficient, powerful and natural E-bike riding experience. It's a seamless extension of a rider's own power that sets Liv and Giant E-bikes apart from other "electric" bicycles. The system consists of four key innovative technologies that work in unison with your own body's power output—a seamless extension of your own capabilities.
ENERGYPAK
EnergyPak side release design makes it easy to handle and remove the battery from the E-bike, plus the battery can be charged on or off the bike for convenience.
SYNCDRIVE PRO
The powerful SyncDrive Pro 2 Motor was co-developed with Yamaha and is their lightest ever E-bike motor. It provides 85Nm of torque, the most in the Amiti E+ range, and will help you confidently conquer the steepest of hills. The Smart Assist mode uses six sensors to optimize your power support automatically. It provides seamless acceleration and a power boost exactly when you need it. With this powerful yet quiet motor underneath you, you'll feel naturally strong in any riding situation and at any speed.
SMART ASSIST
With Smart Assist you can enjoy seamless acceleration and power boost. The Smart Assist Technology system replicates a natural riding style, using the six sensors to add assistance exactly when needed.
RIDECONTROL GO
Available on premium Liv E-Bikes, RideControl Go features a multipurpose button integrated into the top tube. Colored LEDs allow you to switch power modes from the top tube and keep a clean handlebar setup. The lights also display battery level and support mode.
X-Small | Small | Medium | Large | ||
---|---|---|---|---|---|
LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH | ||
A | SEAT TUBE LENGTH (mm) | 380 | 400 | 425 | 450 |
B | SEAT TUBE ANGLE | 77.2° | 78.0° | 77.2° | 78.0° | 76.0° | 76.7° | 76.0° | 76.7° |
C | TOP TUBE LENGTH (mm) | 557 | 555 | 572 | 570 | 597 | 595 | 622 | 620 |
D | HEAD TUBE LENGTH (mm) | 95 | 95 | 100 | 115 |
E | HEAD TUBE ANGLE | 65.7° | 66.5° | 65.7° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° |
F | FORK RAKE (mm) | 44 | 44 | 44 | 44 |
G | TRAIL (mm) | 113 | 108 | 113 | 108 | 113 | 108 | 113 | 108 |
H | WHEELBASE (mm) | 1174 | 1175 | 1188 | 1190 | 1200 | 1201 | 1228 | 1229 |
I | CHAIN STAY LENGTH (mm) | 447 | 447 | 447 | 447 | 447 | 447 | 447 | 447 |
J | BOTTOM BRACKET DROP (mm) | 30 | 20 | 30 | 20 | 30 | 20 | 30 | 20 |
K | STACK (mm) | 606 | 601 | 606 | 601 | 611 | 605 | 625 | 619 |
L | REACH (mm) | 419 | 427 | 434 | 442 | 444 | 452 | 466 | 473 |
M | STAND OVER HEIGHT (mm) | 722 | 730 | 726 | 735 | 717 | 726 | 711 | 723 |
N | HANDLEBAR WIDTH (mm) | 760 | 760 | 800 | 800 |
O | STEM LENGTH (mm) | 40 | 40 | 40 | 50 |
P | CRANK LENGTH (mm) | 160 | 160 | 165 | 165 |
Q | WHEEL SIZE | R27.5" / F29" | R27.5" / F29" | R27.5" / F29" | R27.5" / F29" |
Size | Height (inches) |
---|---|
X-Small | 5'0" 5'4" |
Small | 5'2" 5'7" |
Medium | 5'5" 5'9" |
Large | 5'7" 5'11" |
Specs
Frame | Advanced-Grade Composite front and rear triangles, Advanced Forged Composite upper rocker, 140mm Maestro suspension, 12x148 thru-axle, flip chip - Maestro |
---|---|
Fork | Fox 36 Performance Elite Live Valve, 150mm travel, 44mm offset, FIT4 damper, Boost 110x15QR, electronic adaptive suspension, e-bike integrated, e-bike integrated |
Rear Shock | Fox Float X Live Valve, 185x52.5mm Trunnion mount, electronic suspension, e-bike integrated |
Rims | TRX 2 Hookless Clincher, 29" [F] / 27.5" [R], 30mm inner width |
Hubs | TRX 2 MTB Alloy Hub, 6 Bolt, Pawl Driver (3 Pawl 24T) SRAM XD, 110 x 15 [F] / 148 x 12 [R] Thru-axle |
Tires | Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F] Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R] |
Crankset | Praxis Performance Carbon e-crank arms(XS:160, S/M:165, L:170) SRAM X-SYNC Eagle 36T chain ring |
Shifters | SRAM AXS Rocker Paddle, wireless electronic shifting |
Front Derailleur | MRP 1X HD2 custom co-molded chain guide |
Rear Derailleur | SRAM GX Eagle AXS |
Cassette/Freewheel | SRAM XG-1275, 10-52T, 12-speed |
Chain | SRAM GX Eagle PowerLock |
Brakes | SRAM Code R, hydraulic disc, 220mm[F] /200mm[R] |
Brake Levers | SRAM Code R |
Handlebars | Giant Contact SLR Trail, carbon, 760mm (XS-S), 800mm (M-L) |
Tape/Grips | Liv Tactal Pro-E Single Lock-On Grips |
Stem | Giant Contact SLR Trail, integrated, 40/45/50mm Reach, 7/9degree Sweep Adjust System |
Seatpost | Tranz-X Rad+ dropper, 30,9mm, 30mm travel adjustable (XS/S:120~150mm, M:140~170mm, L:170~200mm) (*3mm housing recommended) |
Saddle | Liv Sylvia E+ |
Pedals | Sold separately |
Accessories & Extras | Tubeless kit (liquid, valves, levers, manual, tool) |
Motor | SyncDrive Pro2 85Nm, powered by Yamaha |
Battery | EnergyPak Smart 400Wh EnergyPak Plus 200Wh range extender compatible |
Controller/Display | RideControl Ergo 3, grip integrated / RideControl GO, frame integrated LED display ANT+ Wireless display compatible |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Color A/Airglow / Large | 04712878866676 | 2303352107 | 23I35736968A |
