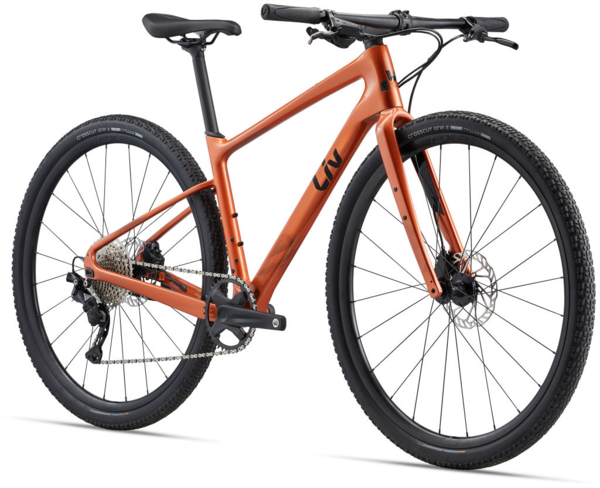

Liv Thrive Advanced GX

Liv Thrive Advanced GX
  • Color: Copper Coin
$2,499.00
Color:
Copper Coin
Size:
Large
Please select options

Details

When your commutes and fitness rides take you on the roads less traveled, the all-new Thrive Advance GX is equipped with a lightweight frame, confidence-inspiring tires, pressure-relieving grips and saddle, and frame mounts to carry the things you need to extend the adventure.

KEY PERFORMANCE FACTORS

Light and Agile
The Thrive Advanced GX features a lightweight and nimble Advanced-Grade Composite frame and fork, balanced geometry, and flat handlebar for ultimate efficiency and control.

Adventure Ready
Ride comfortably and confidently on bumpy roads and gravel with pressure-relieving grips and saddle, as well as a shock-absorbing D-Fuse seatpost. With an array of frame mounts, you can easily add extra water bottle cages or a rear rack to accommodate all your gear for longer rides and adventures.

Functional Versatility
The carbon flip chip - dropout allows you to easily adjust the geometry and tire clearance, giving you more versatility and customization options to suit your riding style and terrain. Switch to the short position for quicker handling and a maximum tire clearance of 40c, or choose the long position for stability at speed and increased tire clearance up to 45c.

Geometry Chart:
SizeX-SmallSmallMediumLarge
Position SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG
SEAT TUBE LENGTH (mm) 350 400 450 500
SEAT TUBE ANGLE 74.5° | 74.4° 74.0° | 73.9° 73.5° | 73.4° 73.0° | 72.9°
TOP TUBE LENGTH (mm) 525 540 560 580
HEAD TUBE LENGTH (mm) 110 135 165 195
HEAD TUBE ANGLE 70.5° | 70.4° 71.0° | 70.9° 71.5° | 71.4° 71.5° | 71.4°
FORK RAKE (mm) 50 50 50 50
TRAIL (mm) 72.8 | 75.3 69.5 | 71.9 66.2 | 68.6 66.2 | 68.6
WHEELBASE (mm) 1013.5 | 1023.3 1020 | 1030 1031 | 1041 1046.3 | 1056.1
CHAIN STAY LENGTH (mm) 425 | 435 425 | 435 425 | 435 425 | 435
BOTTOM BRACKET DROP (mm) 70 | 71 70 | 71 70 | 71 70 | 71
STACK (mm) 534.1 | 534.7 559.6 | 560.2 589.9 | 590.5 618.4 | 619
REACH (mm) 376.9 | 375.9 379.5 | 378.5 385.3 | 384.2 390.9 | 389.8
STAND OVER HEIGHT (mm) 680 710 745 770
HANDLEBAR WIDTH (mm) 600 600 640 640
STEM LENGTH (mm) 80 80 90 100
CRANK LENGTH (mm) 165 170 170 172.5
WHEEL SIZE 700C 700C 700C 700C
Sizes:
SizeHeight (inches)Height (cm)
X-Small 4’10” - 5’4” 148 - 163
Small 5’2” - 5’7” 158 - 169
Medium 5’5” - 5’9” 164 - 175
Large 5’7” - 6’0” 170 - 183

Specs

Frame Advanced-Grade Composite, 12x142mm thru-axle, flip chip, disc
Fork Advanced-Grade Composite, full-composite OverDrive steerer, 12x100mm, disc
Rims Giant P-X2 Disc wheelset, alloy
Hubs Giant alloy, 12mm thru-axle
Spokes Sapim
Bottom Bracket FSA MegaExo
Crankset FSA Omega AGX+, 40t XS:165mm, S:170mm, M:170mm, L:172.5mm
Shifters Shimano Deore SL-M5100, 1x12
Rear Derailleur Shimano RD-M5120
Cassette/Freewheel Shimano CS-M5100, 11x42
Chain KMC X11
Brakes Tektro HD-R280, hydraulic [F]160mm, [R]160mm
Brake Levers Tektro hydraulic
Handlebars Giant Connect, flat XS:60cm, S:60cm, M:64cm, L:64cm
Tape/Grips Giant ErgoContact XS: 30mm, S:30mm, M:30mm, L:33mm
Stem Giant Sport; XS:80mm, S:80mm, M:90mm, L:100mm
Seatpost Giant D-Fuse SL, composite, 350mm
Saddle Liv ErgoContact
Pedals Platform
Accessories & Extras kickstand, 47mm max tire size

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Copper Coin / Large 04712878861282 2300177127 23T29610999N
